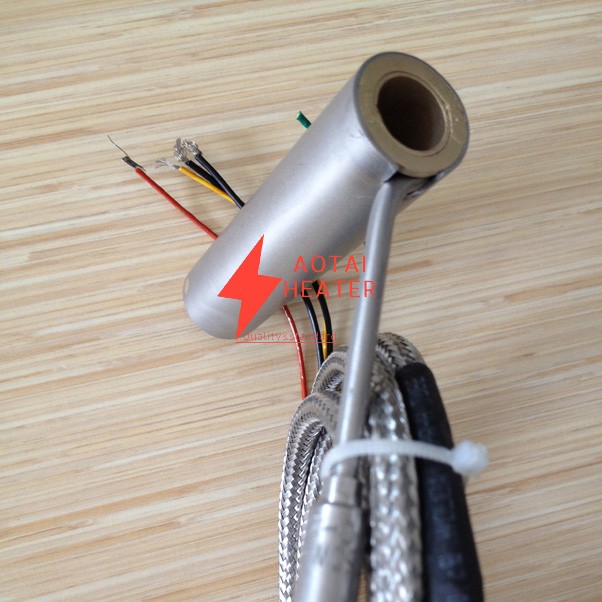

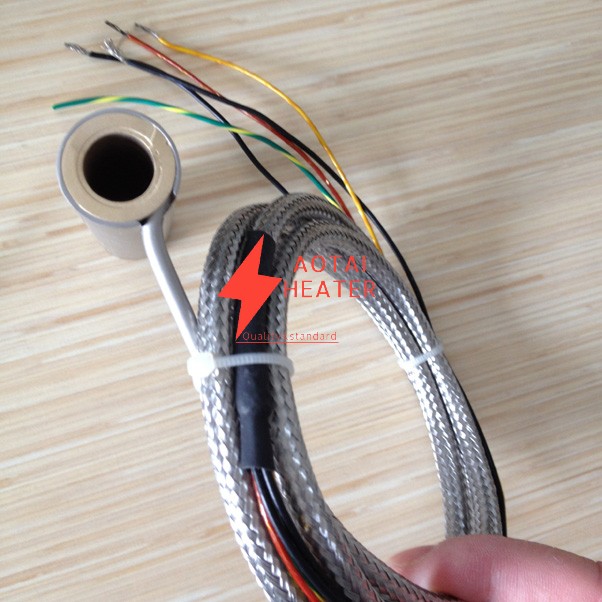

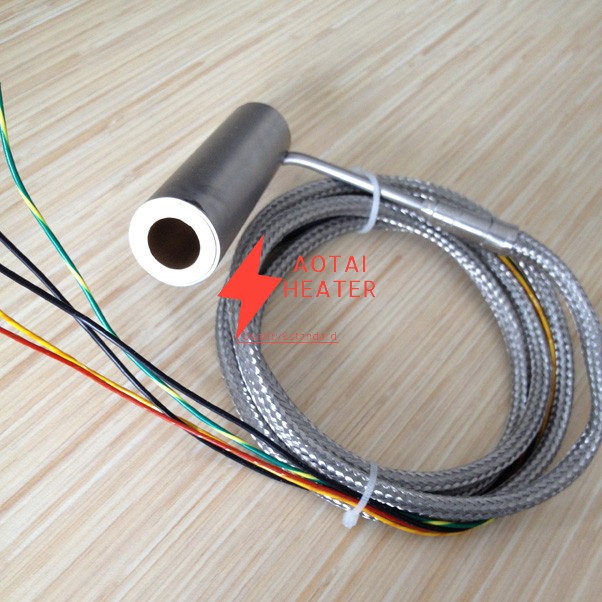

230V 380W ID18.5*110mm Electric Brass Hot Runner Coil Heater with J Type Thermocouple

Key attributes
Industry-specific attributes

type Coil Heater
power source Electric
voltage 230V
Heating capacity high efficiency
Other attributes

warranty 1 Year
material Alloy
Weight (KG) 0.15
place of origin Jiangsu, China
brand name Laiyuan
dimension(l*w*h) ID18.5*110MM
working temperature range 0 - 700 ℃
key selling points High-accuracy
core components hot runner heater
machinery test report Provided
video outgoing-inspection Provided
Temperature range high-temperature
Product name Hot Runner Coil Brass Nozzle Heater
Voltage 12V-480V(customized)
Maximum Sheath Temperature 500℃
I.D available 16mm -150mm
ID tolerance +0.03-0.05; -0.00
Built-in thermocouple With or without J /K TC(Available)
Heater cross section optional 4.2x2.2mm, 3x3mm
Power Tolerance +5% and -10%
Power Density 9w/c㎡
Certification CE,ROHS
Packaging and delivery

Selling Units: Single item
Single package size: 20X20X10 cm
Single gross weight: 1.000 kg
